Segmentation tools : From Imaging to Anatomical Models - The Impact of Slicer 3D on Modern Medicine

Introduction

In the rapidly evolving field of medical technology, segmentation software has become an indispensable tool for enhancing the precision and effectiveness of 3D printing applications. Among the leading solutions, Slicer 3D software stands out for its ability to transform complex medical imaging data into highly accurate 3D models. This article will explore how Slicer 3D is revolutionizing healthcare, providing detailed insights into its applications, benefits, and step-by-step usage for medical professionals.

What is Slicer 3D?

Slicer 3D is a powerful segmentation software designed to process and visualize medical imaging data. It allows users to convert data from CT scans and MRI into detailed 3D models. These models can be used for various medical applications, including surgical planning, custom implant design, and educational purposes. Key features of Slicer 3D include:

  • Advanced visualization tools: Enables detailed examination of anatomical structures.
  • Segmentation capabilities: Allows precise identification and isolation of regions of interest within the imaging data.
  • Integration with 3D printing: Facilitates the creation of accurate 3D printed models directly from medical images.

The Role of Segmentation Software in Medical 3D Printing

Segmentation software like Slicer 3D plays a crucial role in the medical 3D printing process. By accurately segmenting and converting medical imaging data into 3D models, it ensures that the printed objects are highly precise and tailored to the patient’s unique anatomy. This precision is particularly important in applications such as:

  • Surgical Planning: Surgeons can use 3D printed models to plan complex procedures, reducing the risk of errors.
  • Custom Implants and Devices: Creating patient-specific implants and prosthetics that fit perfectly and function optimally.
  • Prosthetics and Orthotics: Designing and producing custom-fit prosthetic limbs and orthotic supports.

3D printing medical equipment: What is possible?

Applications of Slicer 3D in Healthcare

Slicer 3D offers numerous applications in the healthcare sector, helping medical professionals enhance patient care through advanced 3D printing techniques. Some notable applications include:

Surgical Planning and Patient-Specific Models

By creating detailed 3D models from medical imaging data, surgeons can gain a better understanding of the patient’s anatomy and plan their procedures with greater accuracy. This leads to improved outcomes and reduced operative times.

Custom Medical Implants and Devices

Using Slicer 3D, engineers and clinicians can design and print custom implants and devices that are perfectly tailored to the patient’s needs. This customization improves the functionality and comfort of medical devices.

Prosthetics and Orthotics

The software’s ability to produce precise anatomical models makes it ideal for designing prosthetic limbs and orthotic devices that offer superior fit and performance.

Step-by-Step Guide to Using Slicer 3D for Medical Applications

Step 1: Import Medical Imaging Data

Begin by importing your medical imaging data (CT or MRI scans) into Slicer 3D. Ensure that the data is in a compatible format, such as DICOM.

Step 2: Segment the Region of Interest

Use the software’s segmentation tools to isolate and identify the region of interest, which may include bones, tissues, or other relevant anatomical structures. The software excels at this task, allowing you to isolate elements using either image contrast for semi-automatic segmentation or painting tools for precise manual selection of specific areas.

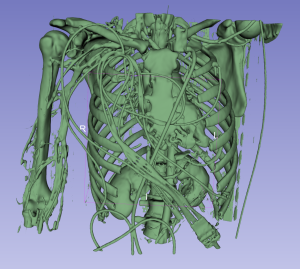

Slicer 3D segmentation

Slicer 3D Tool

Step 3: Generate the 3D Model

Once the segmentation is complete, generate a 3D model from the segmented data. Slicer 3D provides various tools to refine and optimize the model.

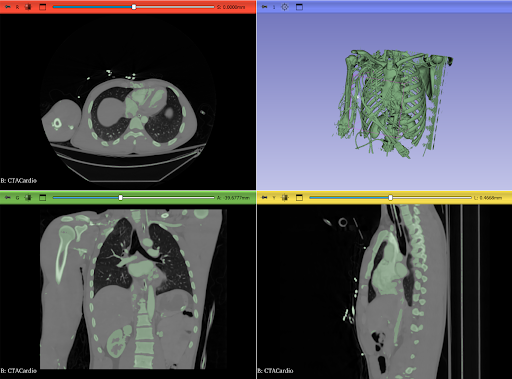

Slicer 3d

Slicer 3D Tool

Step 4: Prepare for 3D Printing

Export the 3D model in a format suitable for 3D printing, such as STL. Ensure that the model is properly scaled and oriented for the printing process. Some fine-tuning might be necessary to clean the file and remove unnecessary elements, either with software like Blender or the Sculpteo platform.

Step 5: Print and Post-Process

Use a compatible 3D printer to create the physical model, if you don’t have a 3D printer it is possible to upload your 3D model to Sculpteo’s site for immediate printing. After printing, perform any necessary post-processing steps to ensure the model meets medical standards. For optimal results, consider the following materials:

  • TPU (Thermoplastic Polyurethane): Ideal for creating soft models, TPU offers excellent flexibility and durability. It is perfect for simulating tissues and other anatomical structures that require a certain degree of elasticity.
  • PA11 (Polyamide 11) or PA12 (Polyamide 12): These materials are well-suited for creating hard models. Both PA11 and PA12 provide high strength and stiffness, making them excellent choices for printing bones or other rigid anatomical structures. Additionally, PA11 is known for its superior impact resistance and ductility, while PA12 offers good resistance to chemicals and moisture.
    Sculpteo upload

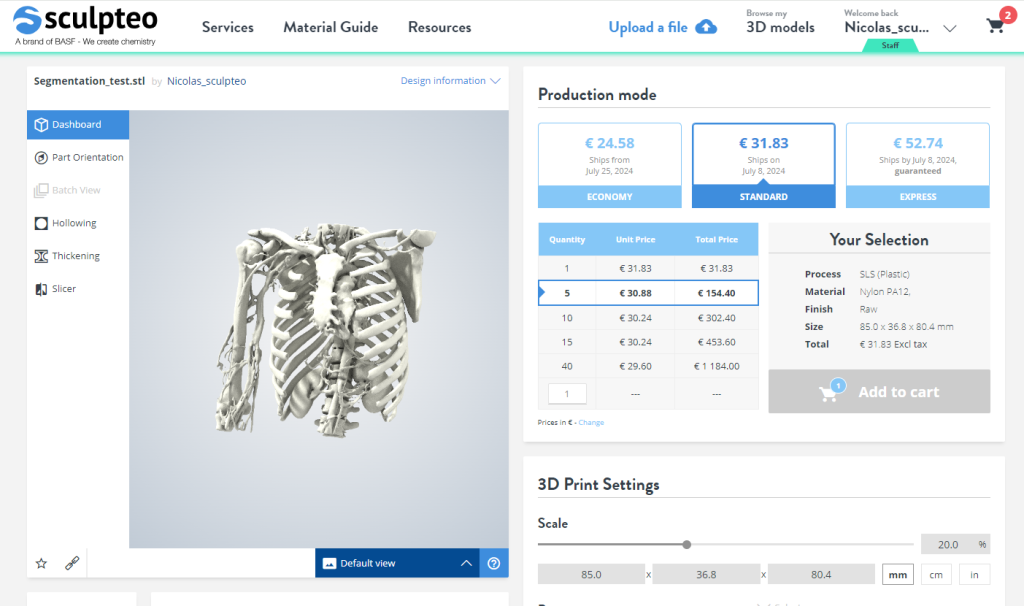

    File uploaded on Sculpteo’s website

    Selecting the appropriate material ensures that your 3D printed models will accurately represent the physical properties of the anatomical structures they are meant to simulate, leading to better preparation and outcomes in medical applications.

    Tips and Best Practices

    • Accuracy: Double-check the segmentation to ensure all relevant structures are included.
    • Optimization: Optimize the model for printing to reduce material usage without compromising quality. Learn more about Topology Optimization.
    • Validation: Always validate printed models against original imaging data to ensure accuracy.
    Slicer 3D Print Sculpteo

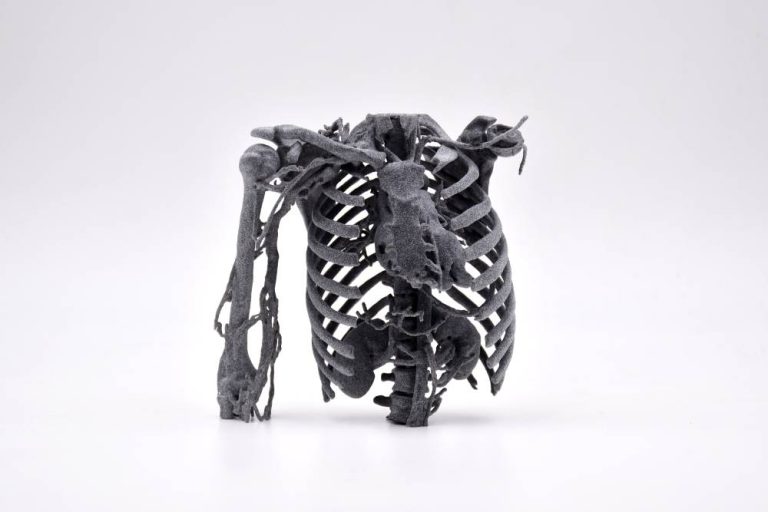

    Sculpteo 3D Printed Object from Slicer 3D (Front)

    Slicer 3D Print Sculpteo

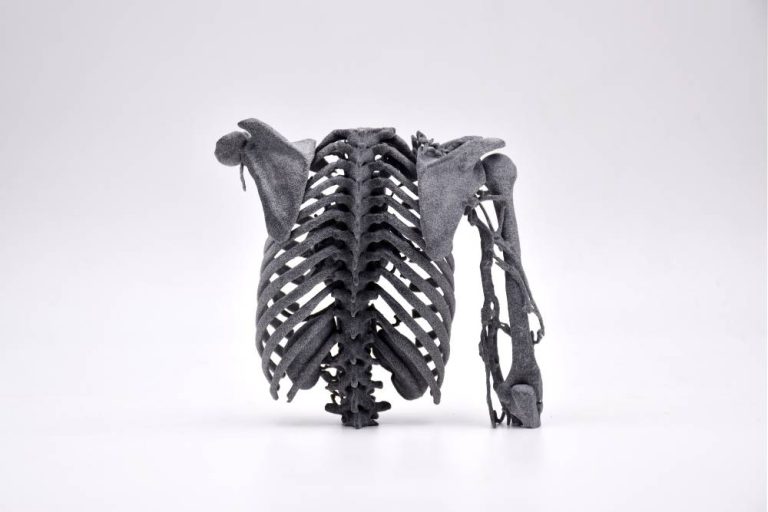

    Sculpteo 3D Printed Object from Slicer 3D (Back)

    Benefits of Slicer 3D for Medical Professionals

    Improved Patient Outcomes

    By providing highly accurate 3D models, Slicer 3D aids medical professionals in performing surgeries and treatments with greater precision, resulting in improved patient outcomes. The software allows for pre-surgical testing, enabling practitioners to practice procedures and ensure the correct tools are used. Additionally, it enhances communication with patients by helping them better understand what is happening in their bodies.

    Cost Savings and Efficiency

    The ability to create patient-specific models and devices reduces the need for trial and error, saving both time and resources. This efficiency translates into significant cost savings for healthcare providers and patients. Given that the cost of operating room time in the US is $46.04 per minute, reducing preparation time can result in substantial savings.

    Enhanced Precision in Medical Procedures

    The detailed visualization and segmentation capabilities of Slicer 3D significantly enhance the precision of medical procedures. By providing high-resolution, patient-specific 3D models, Slicer 3D allows medical professionals to thoroughly analyze and plan surgeries and treatments. This level of detailed planning minimizes risks by enabling surgeons to anticipate and address potential challenges before they arise. Furthermore, the improved precision in surgical execution reduces the likelihood of complications, leading to faster recovery times and better overall success rates for patients. The ability to visualize and segment complex anatomical structures accurately ensures that interventions are tailored to the unique needs of each patient, thereby improving the quality of care and patient outcomes.

    Conclusion

    Slicer 3D software is a game-changer in the realm of medical 3D printing, offering unparalleled precision and versatility. From surgical planning to custom implants, its applications are vast and impactful. As the healthcare industry continues to embrace advanced technologies, adopting tools like Slicer 3D will be essential for improving patient care and operational efficiency.

    At Sculpteo, we specialize in leveraging Slicer 3D and other cutting-edge technologies to produce high-quality medical parts. Whether you need custom surgical tools, patient-specific implants, anatomical models, or medical device prototypes, our advanced additive manufacturing services ensure precise and reliable outcomes. Ready to elevate your medical 3D printing capabilities? Discover the possibilities with Slicer 3D and revolutionize your approach to patient-specific solutions. When you’re ready, upload your 3D model to our website to receive a quote and begin your 3D printing journey!
