Fillet vs. Chamfer: Key Differences and How to Choose the Right Edge

What Is a Fillet?

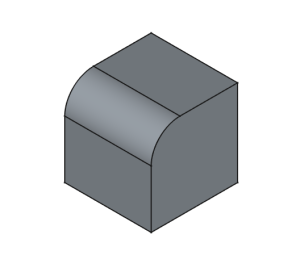

Definition and Visual Characteristics

A fillet vs. chamfer is a common design dilemma, as both serve to modify the edges of parts, but they achieve different results. A fillet is a rounded transition between two surfaces, replacing sharp corners with a smooth curve. This curve helps reduce stress concentration, improve aesthetics, and enhance product performance. The radius of a fillet can vary depending on the design and functional requirements. Objects that need rounded corners often incorporate fillets to improve longevity and strength. Fillets are commonly seen in mechanical engineering for stress concentration management and are ideal for high-stress components.

Mechanical Advantages (Stress Reduction, Friction Control)

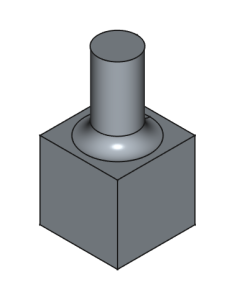

Fillet edges help distribute stress evenly across a surface, preventing premature material failure. The fillet’s rounded shape reduces the chance of cracks forming in areas under high mechanical loads. Stress concentration is significantly reduced in the area around the fillet, making it a vital feature for load-bearing parts. A fillet design helps in preventing rapid deformation of materials and provides smoothness to components that handle significant force. This makes it an essential feature in parts that undergo molding or casting processes. It also improves the overall part structure.

Common Applications (Load-Bearing Parts, Aesthetics)

Fillets are often used in applications where parts must bear significant stress, such as in aerospace, automotive, and medical devices. They are especially helpful in areas where parts meet, such as at the junction of walls in molding or milling. Fillets are also seen in 3D printing designs to create smoother transitions and stronger connections between parts. The design features in product design that require a smooth appearance frequently rely on fillets. Fillets also enhance the usability of products, such as ergonomic handles, where sharp corners are removed for better comfort and safety.

What Is a Chamfer?

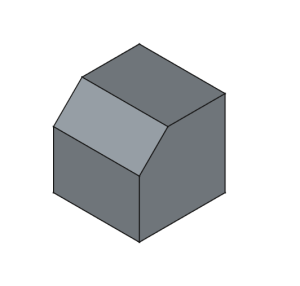

Definition and Typical Angles (45°, 60°)

A chamfer is an angled cut that replaces sharp edges with a sloped surface. Chamfers are most commonly cut at 45°, but angles can vary depending on the design needs. They are frequently applied to the edges of holes in mechanical parts to assist in assembly, prevent wear, and facilitate fastener insertion. Chamfers are often used in situations where sharp corners could cause difficulty during mating parts or assembly, providing smoother transitions that guide components into place.

Practical Benefits (Easier Assembly, Lower Cost)

Chamfers provide sharp edges with a controlled, defined angle that helps ease assembly and ensure correct part alignment. These features reduce the likelihood of misalignment, especially in applications like screws, pins, or bolts. Chamfered edges are designed to simplify the insertion of fasteners, making assembly faster and more efficient. The chamfer tool used to create these cuts is often more versatile than a fillet tool, reducing both time and cost in machining or milling. Because chamfers are simple cuts, they can be processed with standard cutting tools, making them a popular choice in CNC machining.

Use Cases (Mating Parts, Safety Edges)

Chamfers are crucial in applications where parts need to fit together precisely, such as pins, screws, or machine components. In addition to improving assembly ease, they also enhance product design by removing sharp edges that could pose a safety risk. Chamfer design is widely used in 3D printing as well, providing precise angles for parts that require smooth interfaces for fitting. Many high-volume, cost-sensitive production lines prefer chamfered edges due to their ease of manufacturing and low-cost tooling. Sharp edges in products are reduced, improving the safety and usability of tools and consumer goods.

Key Comparison: Fillet vs. Chamfer

Visual and Functional Differences

The key differences between fillet and chamfer are found in their shapes and applications. A fillet creates a smooth, rounded edge, ideal for stress reduction and enhancing the structural strength of parts, especially under high load. A chamfer introduces a flat, angled cut that sharpens the edges of a part, often used for assembly and visual appeal. The decision between fillet design and chamfer design depends on the specific functional needs of the part and whether rapid deformation or mating parts ease is a priority.

Stress Resistance (Comparative Chart)

Feature	Fillet	Chamfer
Stress Reduction	High	Moderate
Ease of Assembly	Moderate	High
Surface Finish	Smooth	Angular
Tooling Requirements	Specialized	Standard
Aesthetic Appeal	Smooth	Angular

When to Use a Fillet

High-Stress or Load-Bearing Components

Fillets are most beneficial for parts that experience high mechanical loads or rapid deformation. They provide better stress distribution and prevent cracks from forming, especially in areas where materials undergo repeated forces. For parts that will be subject to continuous molding, casting, or milling, fillets enhance the durability of the product and the longevity of the component.

Designs Requiring Smooth, Aesthetic Finishes

For products that demand aesthetic appeal, such as luxury goods or consumer electronics, fillets provide a softer, more sophisticated finish. The design of these products often calls for smooth, refined edges that are comfortable to handle and visually pleasing. Fillet design can create attractive transitions between surfaces, ideal for premium designs and ergonomic applications.

Industry Examples (Aerospace, Medical Devices)

Fillets are critical in industries like aerospace, where parts must handle extreme stress. Fillets are used in components such as aircraft wings and engine parts, where stress concentration can lead to failure if not properly mitigated. They also play an important role in medical device manufacturing, where biocompatibility and durability are essential. Plastic parts in medical devices often incorporate fillets to improve their strength and reduce wear over time.

When to Choose a Chamfer

Parts Needing Easy Assembly (Pins, Screws)

Chamfers are often used when ease of assembly is a priority. They help guide parts into place during assembly, reducing the risk of misalignment and improving the accuracy of the final product. In applications where parts must be assembled quickly and efficiently, chamfers offer clear advantages over fillets, especially when dealing with mating parts that need precise fits, such as in the plastic and metal industries.

Cost-Sensitive Production

In situations where cost is a significant consideration, chamfered edges are generally favored. Chamfers are quicker and easier to machine, especially in high-volume production runs. The process of milling or machining a chamfered part is faster, and because standard cutting tools can be used, specialized tools are not required, making it a more economical choice in production.

Deburring and Safety Applications

Chamfers are especially useful for removing sharp corners and edges, making products safer to handle. In tools and consumer products, sharp edges can be a safety hazard, which is why chamfer design is commonly incorporated into product design for ergonomic and safety reasons. Additionally, chamfers reduce the risk of sharp edges in plastic parts or components that are handled frequently.

Decision Factors (Comparison Table)

Factor	Fillet	Chamfer
Stress Reduction	Excellent	Moderate
Assembly Ease	Moderate	High
Manufacturing Cost	Higher	Lower
Surface Finish	Smooth	Angular
Tooling Requirement	Specialized	Standard
Use in 3D Printing	More challenging	Easier
