A CAD file is a virtual blueprint containing detailed design information. Engineers and designers use it to craft precise technical drawings and visualizations. These files act as the foundation of digital modeling across various industries, from architecture to automotive engineering. With different CAD file formats available, such as DWG and DXF, each serves its unique purpose. Some formats are native to specific software, while others are neutral, facilitating cross-platform compatibility. Understanding these formats is crucial as they determine how you can use and share your designs.
When you work with CAD file types, you’re engaging with a rich dataset that includes everything from dimensions and geometries to material specifications. This data is integral for creating designs that are not only visually stunning but also functionally sound. Engineers rely on CAD data to ensure their creations meet exact specifications, while designers use it to bring their visions to life with accuracy and detail. In essence, CAD files are the backbone of modern design and engineering.
CAD files revolutionize the way engineers and designers approach their work. They streamline the design process, allowing professionals to iterate swiftly and accurately. With CAD applications, you can test and refine your designs before they ever see the light of day, significantly reducing the time and cost associated with physical prototyping. In shared projects, CAD systems foster collaboration by providing a common platform where team members can contribute and make adjustments in real time.
CAD file formats are the vessels that carry complex design data. They store information that ranges from simple 2D drawings to intricate 3D models. The choice of format often depends on the software application you’re using and the requirements of your project. Native CAD file formats, like .dwg, are proprietary to specific software, ensuring seamless integration and functionality. On the other hand, neutral CAD file formats, such as STEP and IGES, are designed for cross-platform compatibility, making them ideal for collaborative projects involving multiple software environments.

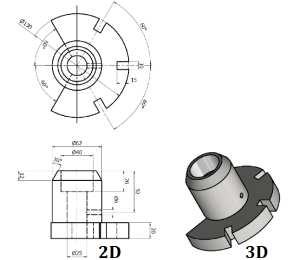

Understanding the types of CAD files is crucial for anyone involved in design and engineering. These file types dictate how you can represent and manipulate your designs, whether you’re working with flat 2D drawings or intricate 3D models.
2D CAD files offer a flat representation of designs, focusing on the essential outlines and specifications. Architects often use 2D files for creating floor plans and layouts, providing a clear and concise view of a building’s structure. Engineers, on the other hand, rely on these files for technical schematics, ensuring that every component is precisely measured and accounted for. With formats like DWG, 2D CAD files offer a simplified view that serves as the foundation for more complex designs.
When it comes to 3D CAD files, the possibilities are endless. These files provide depth and perspective, allowing designers to create detailed models that go beyond mere sketches. In the realm of mechanical CAD, 3D files are indispensable for visualizing complex components and assemblies. They offer a realistic view of how parts fit together, making it easier to identify potential issues before they arise.
For manufacturers, 3D CAD files are a game-changer. They allow for accurate product visualization and simulation, ensuring that the final product meets all specifications. Whether you’re designing a new car model or a consumer gadget, 3D CAD files enhance realism in digital simulations, providing a comprehensive view of the product from every angle. By bridging the gap between concept and reality, these files play a pivotal role in modern design and manufacturing processes.
CNC Machining
CAD files are not just digital representations; they are vital tools that drive innovation and efficiency in various industries. From engineering to architecture, these files transform ideas into actionable plans, enabling precise execution and collaboration.
In the field of engineering and architecture, CAD files are indispensable. They allow engineers to conduct structural analysis, ensuring that their designs can withstand real-world conditions. With architectural CAD, architects can design buildings with unmatched precision, considering every detail from the layout to the materials used. These files enable simulations that model how structures will behave under various conditions, providing invaluable insights during the planning and construction phases.
3D CAD software for mechanical design (industrial and mechanical engineering):
In the manufacturing sector, CAD files are the backbone of efficient product design and production. They enable rapid prototyping, allowing manufacturers to test new designs and iterate quickly. With CAD-driven automation, production lines can operate with precision, reducing errors and ensuring consistency in mass production processes.
If you’re looking to prototype your piece, you can easily get an instant quote with us. Upload your CAD file today and start bringing your design to life with our 3D printing services!
CAD file extensions are the identifiers that tell your software how to handle a particular file. They are short suffixes, typically three to four letters long, that follow the filename and play a crucial role in determining the file’s format and compatibility.
Several CAD file extensions are commonly used in the industry, each serving a specific purpose. The .dwg extension, for example, is widely used in design software and is synonymous with AutoCAD. It offers robust capabilities for both 2D and 3D design, making it a staple in engineering and architecture.
Engineers frequently use .dxf files for sharing drawings across platforms. This format ensures that the essential data is retained, regardless of the software used. For 3D model exchanges, the .stp extension is preferred, as it facilitates the transfer of complex models between different CAD systems. Meanwhile, designers use .iges files for transferring geometric data, ensuring that their designs are accurately represented across various platforms.
While CAD files are the backbone of design and engineering, STL files are the champions of 3D printing. They simplify complex designs, making them ready for fabrication, and are the standard in the 3D printing workflow.

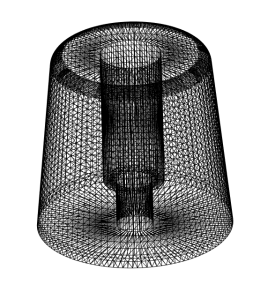

An STL file is a type of 3D file format that breaks down surfaces into triangular facets, simplifying complex designs for 3D printing. Designers use STL files to represent 3D models, ensuring that they can be accurately fabricated by 3D printers. Unlike CAD files, which store detailed design information, STL files focus on the geometric shape of an object, making them ideal for manufacturing applications.
They enable printers to interpret and construct models with precision, ensuring that the final product matches the original design. By breaking down surfaces into triangles, STL files provide a straightforward way for printers to understand complex shapes, making them an essential tool for anyone involved in 3D printing.
STL files are the standard for 3D printing workflows, providing a bridge between digital designs and physical objects. Designers often convert CAD files to STL to ensure compatibility with 3D printers, as these files simplify the printing process by eliminating unnecessary data. This conversion ensures that the design integrity is maintained during fabrication, resulting in a high-quality final product.
In 3D printing, detail matters. STL files allow for detailed output, capturing the nuances of a design and translating them into a tangible object. Whether you’re creating a prototype, a custom part, or an artistic sculpture, STL files provide the accuracy and reliability needed for successful 3D printing. By forming the backbone of the printing process, these files play a crucial role in bringing digital designs to life.

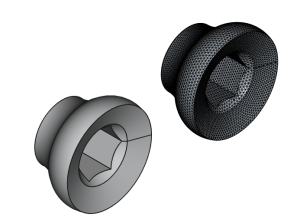

| Feature | CAD Files | STL Files |
|---|---|---|
| Purpose | Used for design, modeling, and prototyping | Used for manufacturing and 3D printing |
| File Structure | Complex, includes dimensions, materials, and design metadata | Simplified, consists of only geometric shapes |
| Editability | Fully editable, allows modifications and iterations | Fixed model, not easily modifiable |
| Flexibility | Supports ongoing design refinements | Optimized for direct fabrication |
| Level of Detail | High detail with precise measurements and attributes | Approximate representation of the 3D model |
| File Complexity | Contains rich metadata, layers, and parametric data | Stores only surface geometry as a mesh |
| Data Type | Vector-based, maintains object properties | Triangle-based mesh, loses object properties |
| Best Used In | Design and development phase | Production and 3D printing phase |
| Modification Support | Easily modified with CAD software | Requires conversion back to CAD format for edits |
| Compatibility | Used in design software like AutoCAD, SolidWorks, and Autodesk Inventor | Compatible with 3D printers and slicing software |
Converting CAD files to STL files is a crucial step in the 3D printing process, enabling designers to bring their creations from the digital realm into the physical world.
Conversion is necessary to make models printer-ready. STL files simplify the printing process by focusing on the geometric shape of the design, allowing printers to accurately fabricate the object. Without this conversion, CAD designs may contain too much data or incompatible features, making them unsuitable for 3D printing. By converting to STL, you ensure that the design fidelity is maintained in the final product, resulting in high-quality outputs every time.
At Sculpteo, there is no need to convert your CAD files to STL before placing an order. We accept both CAD files and mesh files, providing greater flexibility for users.
That said, if you do need to convert a file, several software solutions offer efficient options. AutoCAD allows direct export of CAD files to STL, simplifying the process without additional steps. Blender also provides versatile conversion capabilities, supporting various formats and offering advanced control for those who need it.
For those working with detailed models, SolidWorks includes STL export functions that enable fine-tuned adjustments for optimized conversion. Meanwhile, TinkerCAD stands out with its user-friendly interface, making conversion accessible for beginners entering the world of 3D printing.
Converting CAD files to STL is a relatively simple process since it primarily involves exporting a design into a mesh format. However, converting STL files back to CAD is significantly more complex. STL files contain only geometric data in a triangulated mesh and do not retain parametric structures or design information. To reconstruct an STL into a usable CAD file, specialized software and additional processing steps are required to rebuild surfaces and volumes.
Online converters also offer a quick way to transform CAD files into STL. Platforms like CAD Converter provide an easy conversion process users simply upload their files and receive an STL model ready for use within minutes. These web-based solutions are particularly useful for remote work, eliminating the need for dedicated software.
With the ability to handle multiple file formats, online tools provide valuable flexibility for designers and engineers. Whether you’re working on the go or from home, they ensure fast and efficient file conversion.
Finally, once your file is ready, optimizing its resolution can help achieve the best possible 3D printing results. To ensure the highest quality print, simply upload your file to Sculpteo, and our online 3D printing service will guide you through the process. Our platform automatically analyzes your model, and you can follow our optimization tips to refine your STL file before placing your order.
CAD (Computer-Aided Design) files are used to create 2D or 3D designs of objects, while STL (STereoLithography) files are specifically used for 3D printing. CAD files contain detailed information about the design, such as dimensions, materials, and textures, while STL files only include the surface geometry of the object.
CAD files are typically used by engineers, architects, and designers to create precise designs for various purposes, such as product prototyping or architectural planning. On the other hand, STL files are used specifically for 3D printing, as they provide the necessary information for the printer to create the physical object layer by layer.
Yes, CAD files can be converted to STL files using specialized software or online converters. The conversion process involves simplifying the detailed CAD design into a mesh model that can be read by 3D printers. It is important to note that some details may be lost during the conversion process, so it is essential to review the STL file before printing.
To convert a CAD file to an STL file, you can use software like AutoCAD, SolidWorks, or Blender. Simply import the CAD file into the software, make any necessary adjustments to the design, and then export the file as an STL. Alternatively, there are online converters available that can automatically convert CAD files to STL files with just a few clicks.
CAD files are commonly used in industries such as manufacturing, construction, and engineering for designing and prototyping products. STL files, on the other hand, are used specifically for 3D printing, allowing users to bring their digital designs to life in physical form. Both file types play a crucial role in the design and production processes across various industries.
