Yield Strength Explained: A practical Guide for Engineers & Designers

When you’re building something that needs to last whether it’s a bridge, a car, or a piece of everyday tech knowing your materials isn’t optional, it’s essential. And at the heart of that knowledge is yield strength. This single property can mean the difference between a product that performs beautifully and one that fails when it matters most. But what is yield strength, really? Why does it matter so much in design and engineering? And how can mastering it help you make smarter, safer decisions? In this guide, we’ll break it all down in simple, practical terms, just the facts that matter for engineers, designers, and anyone who wants to build things that work.

Key Takeaways

Yield strength tells you how much stress a material can handle before it deforms permanently. It’s a critical factor in material selection and structural safety.
The stress-strain curve helps visualize when a material transitions from elastic to plastic deformation.
Yield strength differs from tensile strength, and both are important for engineering decisions.

What exactly is Yield Strength? The point of No return

Yield strength marks the critical point at which a material stops springing back and starts staying bent, it’s the stress level where elastic deformation ends and plastic deformation begins. Imagine bending a plastic spoon: at first, it returns to its original shape, but push a bit further and it stays bent. That irreversible point is what engineers call the yield strength. This concept is central in materials science and plays a crucial role in design, manufacturing, and especially 3D printing, where the performance of printed parts under stress determines their functionality and longevity.

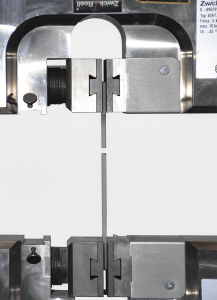

Up to the yield point, a material behaves predictably and recovers its shape when stress is removed. Beyond this point, however, it starts to deform permanently, which can compromise a part’s structural integrity.

This is particularly important in 3D printing, yield strength helps determine whether a printed part will maintain its shape and function when subjected to loads. If you’re printing functional components like gears, enclosures, or mechanical brackets, you need to ensure they can withstand the expected stress without deforming. For example, Ultrasint® PA11 CF, reinforced with carbon fibers, offers a high yield strength and excellent stiffness, making it ideal for demanding mechanical applications. On the other hand, more flexible materials like PA11 ESD may yield at lower stress levels but provide advantages like impact resistance or electrostatic discharge protection critical in electronics applications.

Material selection often hinges on yield strength. Metals like aluminum and steel have well-defined yield points, making them predictable under load.

Understanding and leveraging yield strength not only enhances performance but also boosts safety and reliability two non-negotiables in fields like aerospace, automotive, and industrial manufacturing. By choosing materials with the right yield strength for the job, you can avoid costly failures, improve part longevity, and deliver products that perform consistently in the real world. Whether you’re printing a drone component or designing a medical device, a strong grasp of yield strength helps ensure your designs stand up to the stresses they’ll face.

Visualizing material behavior : The yield strength curve

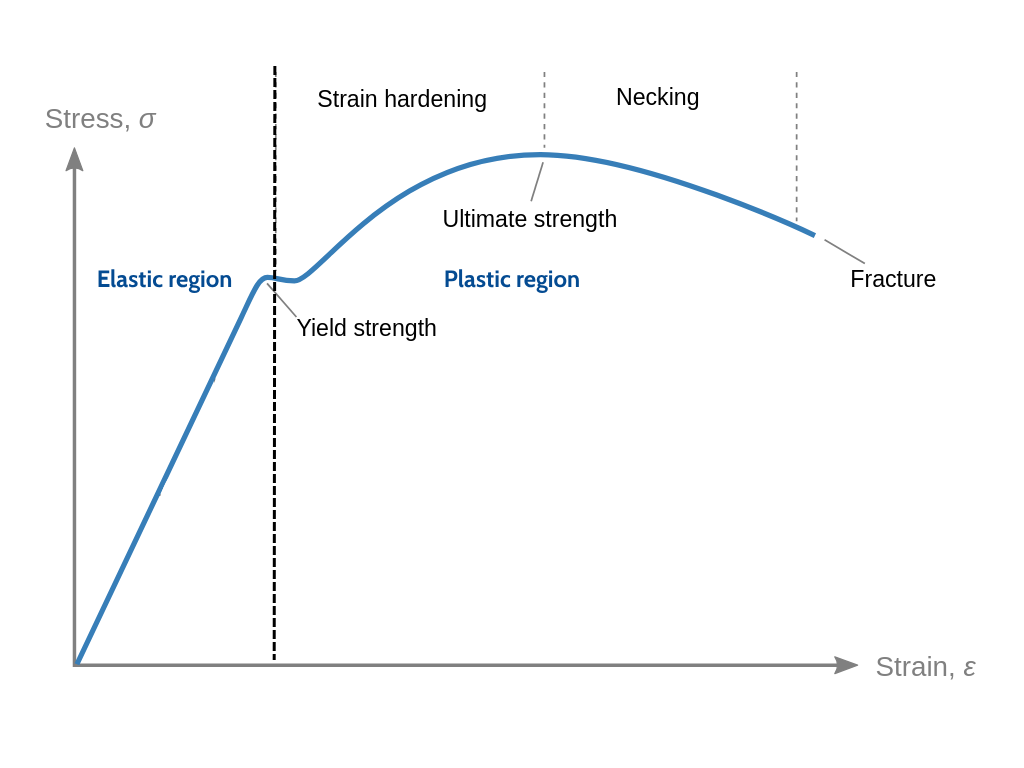

To truly understand yield strength, you must read into the stress-strain curve, a graphical representation of how materials react to stress. This curve is a tool engineers use to visualize and analyze the relationship between stress and strain in a material. At its core, it reveals how a material stretches or compresses under various loads.

The stress-strain curve is divided into different regions. Initially, the curve shows a linear relationship, known as the elastic region. Here, materials exhibit elastic deformation they return to their original shape once the stress is released.

As you move along the curve, you’ll encounter the yield point. This is where the material stops behaving elastically and starts to show plastic deformation. Beyond this point, the material will not revert to its original form, marking the beginning of permanent changes. Engineers pay close attention to this transition as it signifies the maximum stress a material can endure while maintaining its initial properties.

Yield Strength vs. Tensile Strength: Understanding the key differences

Property	Yield Strength	Tensile Strength
Definition	Stress at which a material begins to deform permanently	Maximum stress a material can withstand before breaking
Purpose	Determines the limit before permanent deformation occurs	Identifies the breaking point of the material
Key concern	Preventing shape change or structural compromise	Avoiding complete failure or fracture
Behavior under load	Material returns to original shape up to this point	Material fractures beyond this point
Design implication	Crucial for structural integrity and long-term durability	Critical for high-stress applications and ultimate load handling
Example use case	Support beams, brackets, enclosures	Suspension cables, high-stress joints, load-bearing hooks
Measurement point	Start of plastic (permanent) deformation on the stress-strain curve	Peak of the stress-strain curve before failure
Material insights	High yield strength = good resistance to deformation	High tensile strength = good resistance to breaking under stress

Yield strength and tensile strength are two fundamental metrics that offer a full picture of how a material responds to stress. Yield strength helps prevent deformation, ensuring that parts maintain their shape and function under regular loads. Tensile strength, on the other hand, focuses on preventing catastrophic failure under extreme stress. Engineers must balance both properties when selecting materials to create components that are not only strong but also safe and reliable in their intended applications.

Why Yield Strength matters: Implications for design and safety

In structural engineering, yield strength is a crucial factor in determining how much stress a building or bridge can withstand. Exceeding this limit can lead to material failure, resulting in costly repairs or even catastrophic consequences. Engineers emphasize mechanical strength in their calculations to ensure structural safety, making it a vital part of reliable design.

Various industries, from aerospace to automotive manufacturing, depend on yield strength to guide material and design choices. In aerospace, for example, the materials used in aircraft must endure extreme forces while preserving structural integrity. Yield strength is instrumental in selecting materials that meet these demands, ensuring both performance and safety.

Beyond preventing failure, yield strength also shapes design strategy by determining which materials are appropriate for different applications. Engineers weigh this property alongside others like ductility and fatigue resistance to develop components that are both innovative and durable.

In short, yield strength offers confidence that a structure or component will function as intended, even in demanding conditions. By integrating it into every phase of development, engineers can produce solutions that are not only safe but also long-lasting and efficient.

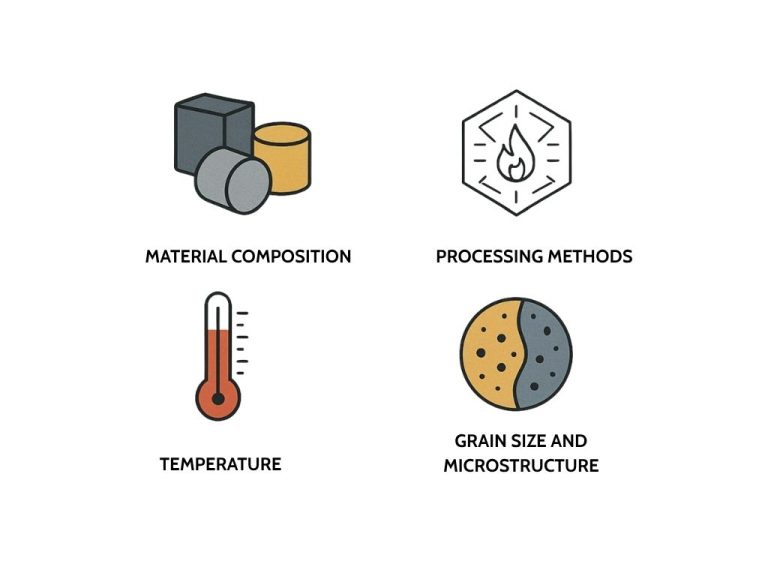

What factors influence a material's Yield Strength?

Several factors influence a material’s yield strength, with material composition being a primary determinant. Different elements and alloys offer varying levels of yield strength, affecting their suitability for specific applications. For example, high-strength steel and stainless steel are known for their robust mechanical properties, making them ideal for demanding structural uses.

Processing methods, such as heat treatment, can also enhance or reduce yield strength. Heat treatment processes, like annealing or quenching, alter a material’s microstructure, affecting its ability to withstand stress. Engineers often use these techniques to tailor material properties to meet specific performance criteria.

Temperature variations play a significant role in yield strength. Many materials experience changes in yield strength when exposed to extreme temperatures. For instance, metals may become more brittle at low temperatures, reducing their yield strength. Engineers must account for these changes when designing components for environments with fluctuating conditions.

Grain size and microstructure are additional factors that influence yield strength. Smaller grains typically result in higher yield strength, as they provide more barriers to dislocation movement within the material. Engineers can manipulate these characteristics through processing techniques, optimizing materials for their intended applications.

In summary, yield strength is not a fixed property, it varies based on several key factors. Engineers must consider composition, processing, temperature, and microstructure when evaluating yield strength. By understanding these influences, they can select materials that meet the demands of their applications, ensuring both safety and performance.

Yield Strength examples in common materials

Aluminum, with its moderate yield strength, is prized for being lightweight. While it doesn’t boast the same strength as steel, its lower density makes it ideal for applications where weight is a concern, such as in the aerospace and automotive industries. It offers a good compromise between strength and weight savings.

Titanium stands out with its excellent yield strength and favorable strength-to-weight ratio. This combination makes it a preferred material in high-performance applications, including aerospace components and medical implants. Its resistance to corrosion further enhances its appeal in environments where durability is crucial.

Polymers, like polyamide, while generally having lower yield strengths than metals, offer unique advantages like flexibility and corrosion resistance. They are often used in applications where these properties are more important than sheer strength. For example, polymers are used in automotive interiors and consumer electronics.

Engineers choose materials based on a combination of yield strength and other performance properties. It’s not just about picking the strongest material, but finding the right balance for the specific application. By considering factors like weight, corrosion resistance, and cost, engineers can select materials that optimize performance and efficiency.
