Best heat resistant 3D printing materials

Introduction

The 3D printing technology stands out for many reasons compared to the traditional manufacturing techniques. One of these reasons is that it’s compatible with many heat-resistant 3D printing materials, just like many materials used in the traditional manufacturing fields. There is a wide variety of materials that are heat resistant and can be used both by professional engineers and 3D printing hobbyists.

From heat-resistant plastics to heat resistant metals, there are several material choices to create parts that will be exposed to heat. Let’s have a look at the best 3D printing materials that are widely used in industrial and commercial products and stand out for their heat resistant properties.

Heat Resistant 3D Printed Polymers

According to the results of our annual survey, the State of 3D Printing 2018, plastic is the most common material used in Additive Manufacturing. That’s because plastics allow both for prototyping and production at a relatively low cost than the other 3D printing materials.

Consequently, due to their extensive use, plastics have many variations regarding their mechanical properties. Let’s see which are the best heat resistant 3D printing plastics:

Multijet Fusion PA12

Our Multijet Fusion PA12  parts are created from a fine polyamide powder. This innovative material provided by HP has many outstanding properties over conventional 3D printed plastics, as it’s water resistant, has an excellent resistance to chemicals, alcohols, fuels, detergents, oils, fats etc. On top of that, the Multi Jet Fusion PA12 objects are well suited for applications requiring heat resistance to high temperatures.

Multi Jet Fusion PA12 Nylon

The material has gone through many experiments regarding its heat-resistant properties, like Glow Wire Ignition and Flammability testing. According to the White Card provided by HP, “The results obtained certify that the material can resist exposure to a range of 700 °C to 800 °C depending on the dimensions and thickness of the part. The fact that this material has a Glow Wire rating of 700 °C at a minimum thickness means that it can be considered acceptable when application requirements specify temperatures below 700 °C.”

It is important to highlight that HP 3D High Reusability PA 121 was the only 3D printing plastic material whose Glow Wire Flammability and Ignition performance had been certified by UL when the White Card was obtained.

Moreover, regarding its flammability properties, the Multijet Fusion PA 12 material ’s flammability degree is obtained and certified by UL is HB at a 0.75 mm thickness. More specifically, the material tolerates slow burning on a horizontal position (at a burning rate ≤ 75 mm/min for thicknesses < 3 mm or burning stops before 100 mm).

That said, the Multijet Fusion PA 12 material is the perfect plastic to choose for projects where large amounts of heat are generated. For additional info about other technical or mechanical properties of the HP Multijet Fusion PA12 material, check out the dedicated page. Moreover, we invite you to read the UL 94 and UL 746A Certification for our HP Multijet Fusion PA12 for even more detailed information regarding the flammability and electric conductivity of this 3D Printing material.

Ultrasint® PA6 MF

Do you need a strong and heat resistant material? Ultrasint® PA6 MF (Mineral Filled) might be the perfect material for you. Our PA6 MF is built on the chemical base of reinforced PA6; this 3D printing material combines high rigidity, media tightness, and enhanced thermal distortion performance. This plastic material is the perfect choice for any advanced technical applications where properties of mechanically reinforced thermoplastics are required.

With a 3300 MPa Tensile Modulus this material is quite resistant and perfect to create engine parts, and other components for the transportation sector. PA6 is strong enough to hold the whole engine assembly and handle all heat, vibration, and static loads.

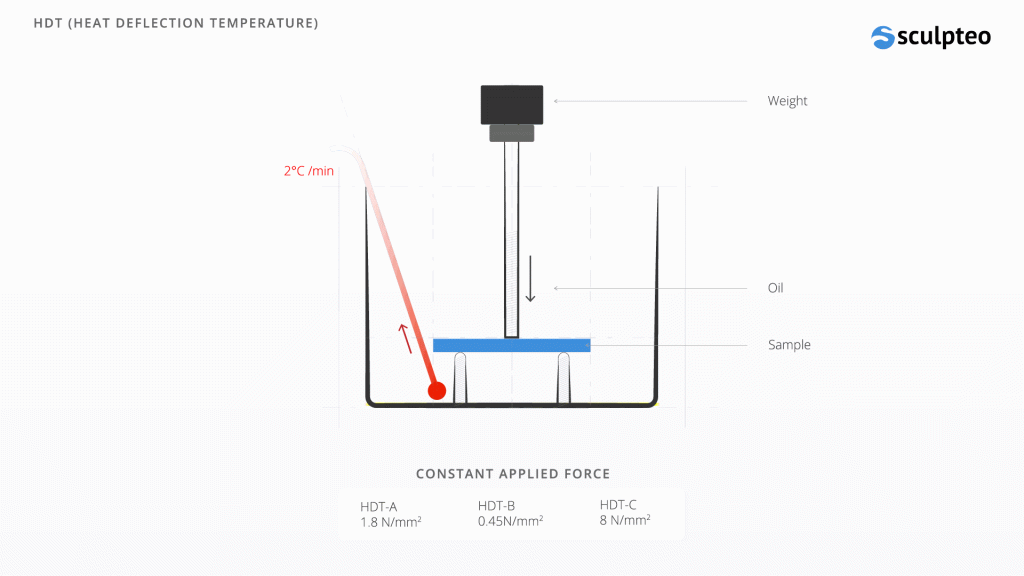

The Heat Deflection Temperature of this material is of 207°, making it particularly interesting for projects where heat resistance is needed.

Ultrasint® PA6 FR

Ultrasint® PA6 FR (Flame Retardant) is an interesting high performance material. This 3D printing materials is a Halogen-Free Flame-Retardant PA6 powder for advanced applications, fitting the needs of advanced industries such as electronics, transportation, or automotive. PA6 FR combines excellent mechanical and thermal performance with flammability requirements.

This Ultrasint® PA6 FR is an engineering polymer powder made with an innovative formula, containing a flame-retardant (FR) additive. Its halogen-free formula based on PA6 material is making this 3D printing materials unique. PA6 FR is the perfect 3D printing material to use for flammability-sensitive application fields, his Heat Deflection Temperature (HDT/B) is at 207°.

This high performance PA6 FR material can also be used for electronics projects, its has a UL 94 V-2 rating starting at 0.8 mm, and it has a Glow Wire Flammability Index (GWFI) up to 960 °C.

Glass-Filled Nylon

Glass-filled Nylon is a variation of Nylon, as it’s made out of polyamide powder and glass beads, thus it’s more durable and resistant than the standard Nylon PA 12. It is durable and strong and you can use it in cases that demand high thermal conditions or in applications that require particular high heat distortion temperature. Since its melting point is 176 °C (249 °F), this material is a great choice if you want to create objects that fit the requirements of the technical parts. Thus, it perfectly fits projects with technical requirements, as for example in the automotive industry where it’s used for the creation of final parts of car engines.

Glass Filled Nylon 3D printing material

Read more about the thermal properties of this material on the dedicated datasheet of Glass-filled Nylon.

Heat Resistant 3D Printed Metals

Titanium

Titanium is a 3D printing material with excellent mechanical properties. Not only it’s very durable, lightweight, highly resistant to oxidation and acid, but it’s also resistant to heat. The melting point of titanium is extremely high (1660° C or 3260° F).

Titanium 3D printing material

For this reason, it is widely used in high-performance manufacturing applications, such as the Automotive, Aerospace, Medical industries.

You can read more about its mechanical and thermal properties on the dedicated Titanium Datasheet.

Aluminum

Aluminum is one of the most lightweight and durable materials used in 3D printing. It has great mechanical properties and can be used for parts subjected to high voltages. Moreover, it allows for high detail in design and with it, you can create complex geometries. One of its most important features is that it’s highly resistant to mechanical stress and high temperatures. Aluminum’s melting point is at 1256 °C. This makes Aluminum one of the best materials for prototyping. In addition, it is used to create durable parts and functional models that resist the high temperatures, such as motors, engines etc. Thus, aluminum is widely used in demanding industries, such as the automotive and aerospace industry.

Aluminum 3D printing material

Read more about the thermal treatment tests of Aluminum, and get to know more about its heat resistant properties.

Stainless Steel

Stainless Steel is another metal that has a high melting point: 1400 °C. Since stainless steel is melted at a very high temperature, it is widely used in demanding projects of various manufacturing industries as well as for prototyping. In the medical industry, it’s used for surgical assistance, endoscopic surgery, and creation of customized orthopedics. In the aerospace and automobile industry, it is used for producing mechanical parts that need to resist to heat and abrasion. Additional to the great heat resistant properties of stainless steel, it has a very strong resistance against corrosion and is distinguished for its high ductility.

Aluminum 3D printing material

You can check out the Datasheet for the Stainless Steel material for more information about its mechanical and thermal properties.
